Description

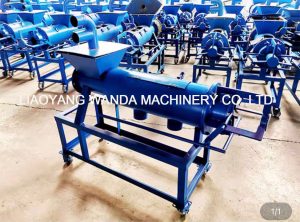

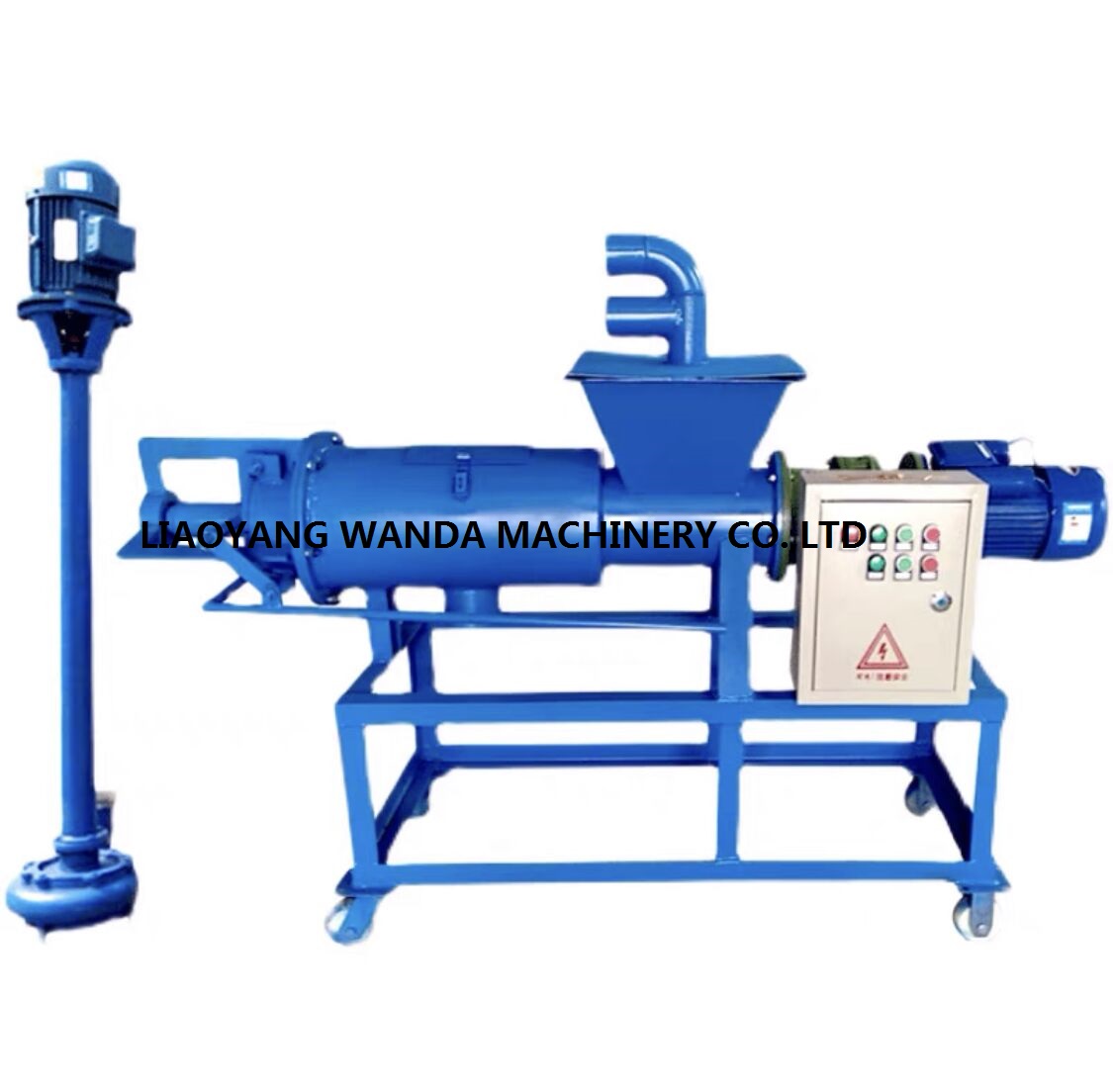

Animal manure treatment screw press machine
Mini screw press machine is specialized design for farming animal manure treatment,it is high efficient screw press machine with smaller occupied area and higher capacity and less weight.and its structure is simple and operation is very easy,it saves labor cost and energy consumption .it is also widely used in many other fields for solid and liquid separation with good reputation and good quality.
Application Field
Screw extrusion screw press machine can be widely used in livestock and poultry dung (pig, chicken manure, YaFen, rabbit manure, cow dung and so on animal manure) dehydration processing, this machine is mainly composed of: mesh, spiral twisted dragon, spiral blade adopts high quality 304 stainless steel and alloy manufactured through special process, has the very good corrosion resistant, and so on characteristics, is two to three times the service life of the other similar products
Working Principle
The manure is pumped to the machine by the supporting pump, and then is gradually pushed to the front of the machine by the gargantuan dragon. Meanwhile, the front part pressure of the machine is constantly increased, forcing the water in the material to move to the screen and flow out of the drain pipe .this machine is continuous working type. The raw material is continuously fed to the machine and the pressure of the leading edge is increasing. When it reaches a certain quantity, the discharge port is open and and the solid is extruded out.The discharge speed and water content can be adjusted by the weight block under the main body.
Features
The machine is with high level automation, simple operation, easy maintenance and large processing capacity, low power consumption, suitable for continuous operation.The weight of the equipment is about half a ton and the size is small, this can greatly improve the efficiency of manure treatment.
Product Parameters
|
Model
|
Main machine power(kw)
|
Pump power(kw)
|
Overall size(mm)
|
Input capacity(m3/h)
|
Solid output capacity(m3/h)
|
|
WDSP-180-S
|
4
|
3
|
1800x700x1300
|
8-10
|
1.5-2
|
|
WDSP-180-L
|
4
|
3
|
2060x700x1300
|
8-12
|
1.5-2
|
|
WDSP-200-S
|
5.5
|
3
|
1950x700x1300
|
10-12
|
2-3
|
|
WDSP-200-L
|
5.5
|
3
|
2200x700x1300
|
12-15
|
4-5
|
|
WDSP-300-S
|
7.5
|
4
|
2060x800x1400
|
25-30
|
6-7
|
|
WDSP-300-L
|
7.5
|
4
|
2300x800x1400
|
30-35
|
8-10
|
|
WDSP-400-S
|
11
|
4
|
3100x1200x1700
|
30-40
|
8-10
|
